Features:

▪ 16 channel IP and 4 channel HD-UDI 1080P 2U standalone DVR
▪ Dual-core CPU presents the powerful preview, recording, playback and network performance
▪ Up to 20 channel 1080P realtime preview
▪ H.264/MPEG-4 decoding & H.264 dual-stream encoding
▪ IP: 16 channel @D1, 8 channel @720P, 4 channel @1080P realtime recording
▪ HD-SDI: 4 channel 1080P realtime recording
▪ HDMI / VGA / TV (BNC) synchronous video output
▪ All channel simultaneous realtime playback, GRID interface & smart search
▪ Support Multi-brand network cameras such as: Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY and ONVIF
▪ Support remote network camera encoding setting & image adjust
▪ IP Search feature to auto discover network cameras
▪ Smart video detection: MD, camera blank, video loss
▪ 3D intelligent positioning with Dahua PTZ dome camera
▪ Easy backup: USB/eSATA devices, CD/DVD-RW & network download
▪ Alarm triggering screen tips, buzzer, PTZ, e-mail & FTP upload
▪ Support 8 SATA HDDs up to 24TB, 1 eSATA up to 12TB, 4 USB2.0

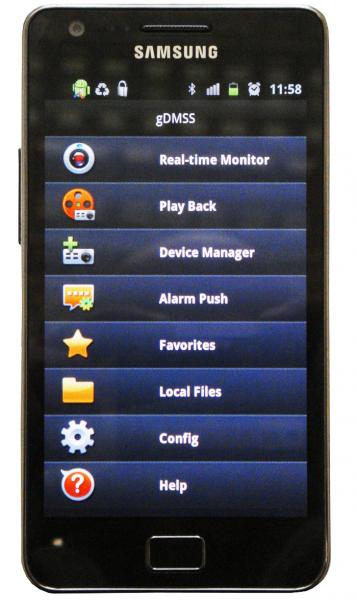

▪ Built-in web server, CMS(DSS/PSS) & DMSS

Technical Specifications:

▪ Main Processor: High performance Dual-core embedded microprocessor
▪ Operating System: Embedded LINUX
▪ System Resources: Pentaplex function: live, recording, playback, backup & remote access

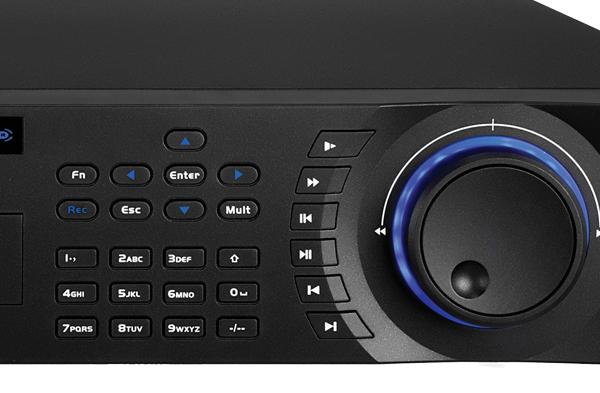

▪ Control Mode: Front panel, USB mouse, IR remote control, Keyboard, Network
▪ IP Camera Input: 16 channel@D1 / 8 channel@720P / 4 channel@1080P
▪ IP Camera Supported List: Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY, ONVIF
▪ HD-SDI Input: 4 channel, BNC
▪ Video Standard: 1080P(25/30)/1080i(50/60)/720P(25/30,50/60), (SMPT274/292)
▪ Video Output: 1 HDMI, 1 VGA, 1 TV( BNC, 1.0Vp-p, 75?)
▪ Loop Output: 4 channel, HD-SDI, BNC
▪ Audio Input: 4 channel, BNC(200-2800mV, 30KΩ)
▪ Audio Output: 1 channel, BNC(200-3000mV, 5KΩ)
▪ Voice Intercom: 1 channel input, BNC(200-2800mV, 30KΩ), 1 channel output, BNC(200-3000mV, 5KΩ)
▪ Display Split: 1/4/8/9/16/25
▪ Resolution: 1920×1080, 1280×1024, 1280×720, 1024×768
▪ Tour Display: Support
▪ Privacy Masking: 4 self-defined four-sided zones for privacy masking for each camera
▪ OSD: Camera title, time, video loss, camera lock, motion detection, recording
▪ Video/Audio Compression: H.264 / G.711
▪ Image Resolution: 1080P(1920×1080) / 720P(1280×720) / D1/4CIF(704×576/704×480)
▪ Encoding Speed: IP: Max 480fps@D1 / 240fps@720P / 120fps@1080P, HD-SDI: Max 100/120fps@1080P + 100/120fps@D1
▪ Bit Rate: 256~8096Kb/s per channel
▪ Recording Quality: CBR, VBR(1~6 level, level 6 is the best)
▪ Recording Mode: Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
▪ Recording Priority: Manual >Alarm >MD >Regular
▪ Recording Interval: 1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.
▪ Trigger Events: Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips
▪ Motion Detection: Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
▪ Video Loss & Camera Blank: Support
▪ Alarm Input: 16 channel
▪ Relay Output: 6 channel
▪ Playback Channel: 1/2/4/All
▪ Search Mode
▪ Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
▪ Playback Functions: Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom(any size)
▪ Backup Mode: Flash drive/ USB HDD/ USB CD&DVD-RW / eSATA Device / Built-in SATA burner/ Network download
▪ Ethernet: RJ-45 port (10/100M/1000M)
▪ Network Functions: HTTP, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server
▪ Remote Operation: Monitor, PTZ control, Playback, System setting, File download, Log information
▪ Hard Disk: 8 SATA ports, 8 HDDs or 6 HDDs + 1 CD/DVD-RW, Up to 24TB
▪ eSATA: 4 External SATA ports, up to 12TB
▪ Space Occupation: Max 3.6GB/H per channel
▪ HDD Management: HDD Group, HDD hibernation technology, HDD faulty alarm & Raid(Redundancy)
▪ USB Interface: 4 ports, For mouse control & backup
▪ RS232: Dahua keyboard, PC communication
▪ RS485: PTZ control
▪ Power Supply: AC 100~240 V, 50/60 Hz
▪ Power Consumption: 40W(without HDD)
▪ Working Environment: -10 ~+55°C / 10~90%RH / 86~106kpa
▪ Dimension: 2U, 440mm×460mm×89mm(W×D×H)
▪ Weight 6.5KG(without HDD)
