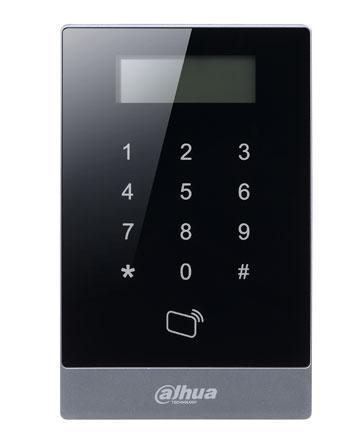

RFID Standalone ASI1201A
Features:• Touch keyboard and LCD display• Support 30,000 valid cards & 150,000 records• Support multiple cards(default IC card)• Support card, password and combination• TCP/IP or RS-485 interface to PC• Wiegand or RS-485 interface to readers• Door time out alarm, intrusion alarm, duress alarm and tamper alarm• Anti-pass back, multi-card open• Support 128 efficient time and holiday schedules• Watch dog function ensure device free from halting• Surface mounted installationTechnical Specifications:System• Main Processor 32 Bit• Memory 16MInput/Output Ports• Input Door sensor x 1, Exit button x 1, Alarm input x 2• Output Relay x 3 (Door lock, Bell, Alarm)• Reader Reader x 1• Read Format 13.56MHz(Mifare)/125KHz(EM, Optional)• Read Range 3-8cm (max.)Capacity• Cardholders/Events 30,000/150,000Function• ID Setting Using friendly CMS or command by keypad• User Management General, VIP, Guest, Patrol, Black list, Force• Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm• Schedule Setting Support 128 groups of schedule, 128 groups of period and 128 groups of holiday periodInterface• To PC RJ45(10/100M)/RS485• To Reader Wiegand/ RS485General• RTC Yes• Beep Tone Buzzer• LCD Display Sensitive touch keypad with blue backlight• Ingress protection IP55• Power Supply 9-15DC/130mA• Working Environment -30?-+60?• Working Humidity =95%• Dimension(W× D× H) 150mm*96mm *16mm• Weight 0.35Kg
