Features:
• Max 64ch IP cameras connection
• Up to 16 channel HD realtime transmission
• Up to 64 channel@D1, 32 channel@720P, 16 channel@1080P realtime recording
• Up to 6-screen output: 6 HDMI sync output/1 VGA+5 HDMI sync output (Default: 2HDMI+1VGA)

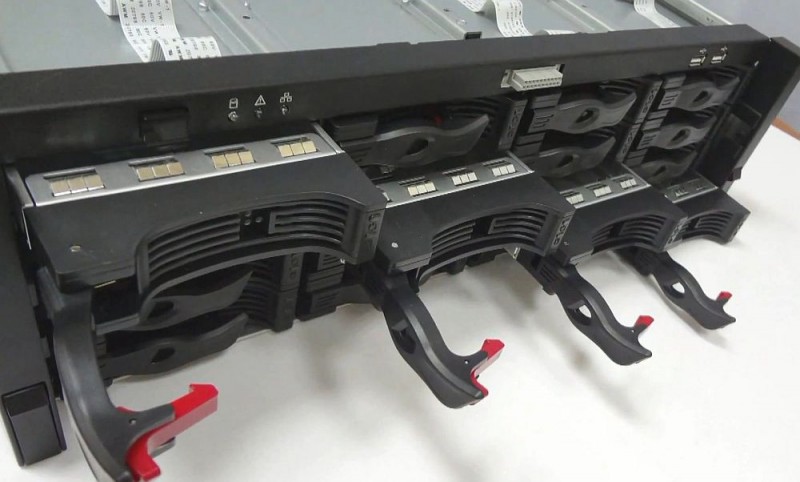

• Support 16 hot-swap SATA HDDs to better its scalability and flexibility
• Support RAID0/1/5(optional)
• Human-oriented Dahua UI
• Compatible with Dahua SDK and seamless integrated to other platforms
• Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotech and etc.
Technical Specifications:
• Main Processor: Intel® Core™ i3 Processors
• Operating System: Embedded LINUX
• Motherboard: Embedded Board (Support 7x24 operation)
• Memory: 2GB DDR3(up to 8GB)
• Case: Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design
• Fan: Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation
• Interface: Local GUI &WEB GUI
• Input: 64ch@D1/32ch@720P/16ch@1080P
• Transmission: 64ch@D1/32ch@720P/16ch@1080P
• Recording: 64ch@D1/32ch@720P/16ch@1080P
• Playback: 4ch@1080P/8ch@720P/16ch@D1 (Screen 1)
• Recording Resolution: 8M, 5M, 3M, 1080P, 720P, 960H, D1, CIF, QCIF, VGA
• Audio 1ch Mic in, 1 audio in/out,
• Recording Mode: Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
• Alarm Recording: Video loss, Camera blank, Motion detection, External alarm
• Backup Mode: Network download / USB HDD/USB CD&DVD-RW / eSATA Device

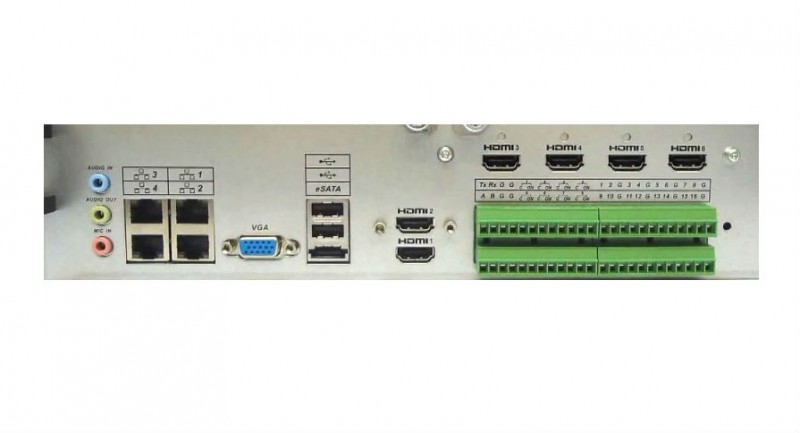

• Interface: 6 HDMI, 1 VGA (Default: 2HDMI+1VGA)
• Video Output: 6 HDMI, or 1ch VGA(or built-in LCD) & 5ch HDMI sync video output
• Multi-screen Display: The 1st screen: 1/4/6/8/9/16/32/64
• The 2nd-6th screens: 4
• Privacy Masking: Four customized zones for privacy masking for each area
• Hard Disk: 16 SATAII
• HDD Mode: Single, Raid 0, Raid 1, Raid 5. (Support global HDD Hot-standby) (Optional)
• Interface: 4 RJ-45 ports(10/100/1000M)
• Ethernet Port 4 Ethernet ports joint working or 4 independent 1000M Ethernet ports
• Motion Detection: Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
• Alarm Input: 16ch, low level effective, green terminal interface
• Relay Output: 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface

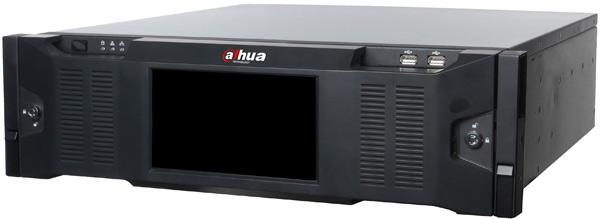

• Front cover: Support hot swap, 7" inch HD LCD (1920 x 1080 / 1280 x 1024 / 1024 x 768) (Model –D only)
• USB: 4 USB ports(2 on the front-panel, 2 on the rear panel)
• eSATA: 1 eSATA (Video Backup)
• Power Supply: 100V-240Vac, 47-63Hz
• Power Consumption: ＜240W（Include HDD）
• Working Environment: -10˚C~55˚C
• Working Humidity: 10%~80% ( non-condensation)
• Dimension: 485mm×448mm×133.2mm (W×D×H)
• Weight: 35Kg
• Installation: Rack-mounted
