Features:

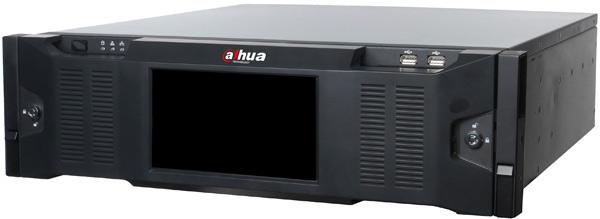

▪ 128 channel standalone Network Video Recorder
▪ Support a wide range of the 3rd party IP cameras
▪ Up to 32 channel 1080P cameras realtime live view
▪ Up to 6-screen output: 6 HDMI sync output/1 VGA+5 HDMI sync output
▪ Support 16 hot-swappable SATA HDDs to better its expandability and flexibility
▪ Support multiple RAID mode such as RAID0, RAID1 and RAID5
▪ The latest Dahua UI adopted to make operations more human-oriented.
▪ Based on a multi-client system and supports up to 128 channel @D1, 64 channel @720P, 32 channel @1080P realtime recording
▪ Compatible with Dahua SDK and seamless integrated to other platforms
Technical Specifications:
▪ Main Processor: Intel® Core™ i7 Processors
▪ Operating System: Embedded LINUX
▪ Motherboard: Embedded Board (Support 7x24 operation)
▪ Memory: 4GB DDR3(up to 8GB)
▪ Case: Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design
▪ Fan: Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation
▪ Interface: Local GUI &WEB GUI
▪ Video Input: 128ch@D1/64ch@720P/32ch@1080P
▪ Transmission: 128ch@D1/64ch@720P/32ch@1080P
▪ Recording: 128ch@D1/64ch@720P/32ch@1080P
▪ Preview: 6ch@1080P/9ch@720P/36ch@D1
▪ Playback: 6ch@1080P/9ch@720P/36ch@D1
▪ Recording Resolution: 5M, 3M, 1080P, 720P, 960H, D1, CIF, QCIF, VGA
▪ Audio: 1ch input,1ch output, 1ch microphone
▪ Recording Mode: Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
▪ Alarm Recording: Video loss, Camera blank, Motion detection, External alarm
▪ Backup Mode: Network download / USB HDD/USB CD&DVD-RW / eSATA Device

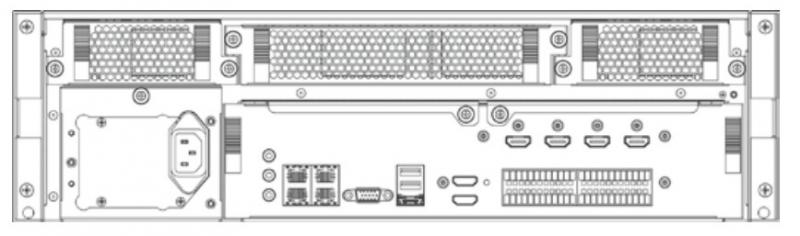

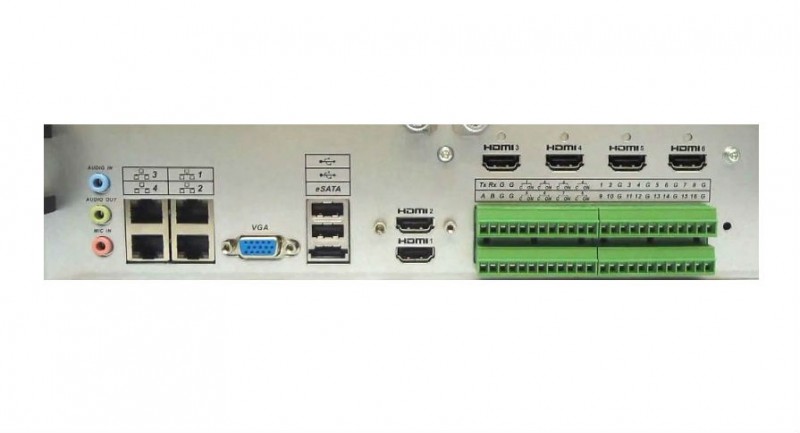

▪ Display Interface: 6 HDMI, 1 VGA
▪ Video Output: 6 HDMI, or 1ch VGA(or built-in LCD) and 5ch HDMI sync video output
▪ Multi-screen Display: The 1st screen: 1/4/6/8/9/16/32/64/128, The 2nd-6th screens: 4
▪ Privacy Masking: Four customized zones for privacy masking for each area
▪ Hard Disk: 16 SATA II s
▪ HDD Mode: Single, Raid 0, Raid 1, Raid 5. (Support global HDD Hot-standby)

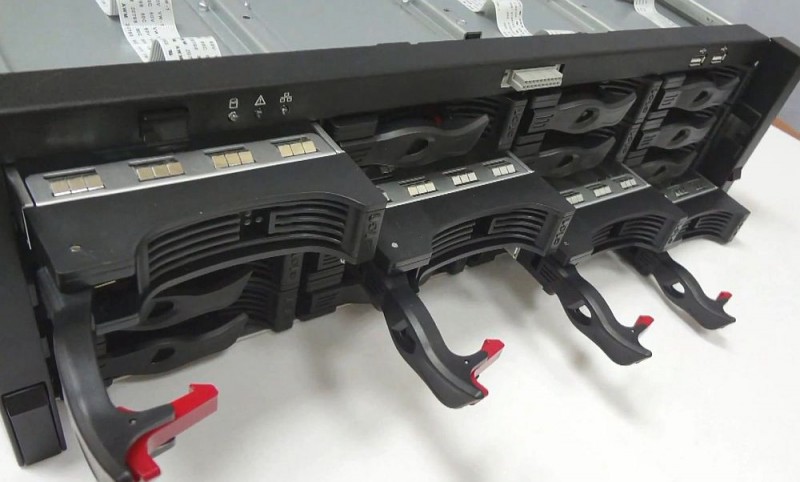

▪ HDD Installation: Independent HDD rack, support hot swap
▪ Network Interface: 4 RJ-45 ports(10/100/1000M)
▪ Ethernet Port: 4 Ethernet ports joint working or 4 independent 1000M Ethernet ports
▪ Motion Detection: Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
▪ Alarm Input: 16ch, low level effective, green terminal interface
▪ Relay Output: 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface
▪ Front cover: Support hot swap
▪ USB: 4 USB ports(2 on the front-panel, 2 on the rear panel)
▪ eSATA: 1 eSATA
▪ Power Supply: 100V-240Vac, 47-63Hz
▪ Power Consumption: ＜240W（Include HDD）
▪ Working Environment: 5C~40C
▪ Working Humidity: 10%~80% ( non-condensation)
▪ Dimension: 133mm*446mm*500mm(W×D×H)
▪ Weight: 35Kg
▪ Installation: Rack-mounted
